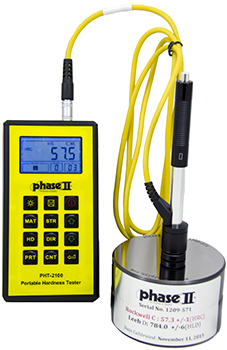

Model No. PHT-2100
Our new Rugged all metal frame portable hardness tester is suited for rough environments such as mining facilities, pipeline, bridge and tower inspections, etc and is packed with features typically found on high end models only. This new leeb hardness tester is designed to test the hardness of large hard metal parts. Loaded with useful functions only found on high priced models the PHT‐2100 is clearly setting a new industry standard by being the most accurate, economically priced hardness tester on the market today. Fast test speeds coupled with memory and output, this unit is a hand’s down winner whether you are out in the field or in the QC shop.
The PHT‐2100 can perform tests that easily convert to the most popular hardness scales, including Rockwell, Brinell, Vickers, Shore, etc.
Designed to test large hard parts:
Example: Tool steel should be close to 1” thick of solid material
|
|
Rugged Aluminum Extrusion Body!
|
Operation:
- Load the impact body
- Place the impact body on your test piece
- Push the button to begin testing and obtain reading
Standard Accessories:
- Base instrument
- Impact device D
- Calibrated test block
- Custom carry case
- Cleaning brush
- Operation manual
Optional accessories:
- Impact devices; DC, D+15, DL, G, C
- Special support rings
- Mini Printer
Functions:
- Easy to use keypad operation
- Auto identification of Impact Device
- Large LCD display with back light
- USB Ouput
- Automatic conversions to: Brinell, Rockwell B &C, Vicker and Shore
- Automatic mean value as well as Min &Max values
- Battery Indicator
- Memory capacity (100 groups)
Specifications:
- Accuracy: +/- 0.5% (referred to L=800,
- Repeatability accuracy: +/- 4L units) L=Leeb
- Measuring range: 200-960 HL
- Materials: steel &cast steel, alloy tool steel, stainless steel, grey cast iron,
- spheroidal iron, cast aluminum, brass, bronze, wrought copper alloy.
- Battery type: AA alkaline (4)
- Operating temperature: 5-104 degrees F
- Dimensions: 150 x 74 x 32mm
- Weight: 245 grams
Optional accessories:
- Impact devices; DC, D+15, DL, G, C
- Special support rings for convex/concave surfaces
|
|
