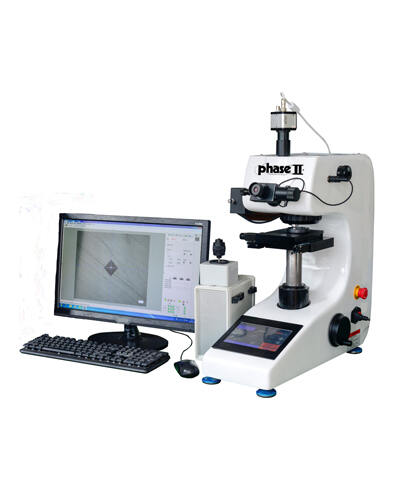

Model No. 900-505
- Designed to test in Vickers (HV) and Knoop (HK) hardness scales.
- Fully programmable & automatic Vickers and Knoop hardness testing
- All Vickers hardness models in this series are supplied with an Auto Turret.
- All Phase II Vickers hardness testers come standard with digital camera, camera adaptor tube, usb cabling and software
- All software will do hardness conversions on screen
1. Motorized XY stage, standard size: 110mmX110mm table dimension, 50mmX50mm XY travel lengths
2. XYZ stepping drive box, with AC power cable, USB communication cable, XY motor cable, Z motor cable, and RS232 cable.
3. 1.3M Pixel USB 2.0 Camera (130-WOM)
4. Fully automatic Vickers software (USB dongle and software CD)
Our advanced line of Micro Vickers hardness testers are state-of-the-art, precise testing systems suitable for Vickers hardness analysis of metallic specimens in metallography laboratories or production environments.
The Phase II micro-vickers hardness testers are versatile and user-friendly systems, designed for the accurate Vickers and Knoop hardness testing of small precision parts, thin materials, coatings, wires and case depth determinations. The Phase II 900-505 micro-vickers hardness tester includes Automated X-Y-Z platform and controllers along with Auto-Turret, Video Cam, Adapter, USB Output Cable and Automatic Measurement Software. The 900-505 Micro Vickers hardness tester covers the load range from 10g to 1kg.
Conforming to ASTM E-384/92 vickers hardness testers standards, the 900-505 series micro vickers hardness testers will offer unmatched repeatability. This micro Vickers hardness tester can toggle back and forth between Vickers and Knoop measurement. A perfect rugged performer suited for any environment, the Phase II vickers hardness testers are offered with a 5 year warranty and free lifetime technical support.
| Objective lens |
10× (observation) |
40× (measurement) |
| eyepiece |
10× |
| Total magnification |
100× (observation) |
400× (measurement) |
| Measurement resolution |
0.0625μm |
| Halogen brightness |
10 adjustable |
Hardness Tester Specifications:
- 1. Test Forces: (gf) and (Nm)
10, 25, 50,100, 200, 300, 500, 1000(1K) gf
98, 245, 490, 980, 1960, 2940, 4900, 9800 Nm
- 2. Test Scales:
Vickers Scales: HV0.01, HV0.025, HV0.05, HV0.1, HV0.2, HV0.3, HV0.5, HV1
Knoop Scales: HK0.01, HK0.025, HK0.05, HK0.1, HK0.2, HK0.3, HK0.5, HK1
- 3. Test mode: HV / HK
- 4. Language: English / Chinese
- 5. Test force application: Automatic –Loading-Dwell-Unloading
- 6. X-Y-Z Testing Table a) Dimension: 100×100mm b) Travel: 25×25 mm c) Revolving power: 0.002mm
- 7. Selection of hardness scale conversions
- 8. Dwell time of the test force: 0~90s (5 sec increments)
- 9. Turrett: Toggle between indenters and objectives: Automatic and manual selectable
- 10. Brightness: adjustable
Currently the system provides 14 programmable pattern types:
- Line;
- Line Set;
- Free Click;
- Horizontal Line;
- Vertical Line;
- Curve Line Sets;
- Curve Matrices;
- Arc;
- Gear Fillet;
- Gear Top Parallel;
- Auto Line Sets;
- Auto Matrices ;
- Circle Center;
- Curve Gear Top Parallel
|
|
|
