Model No. 900-391

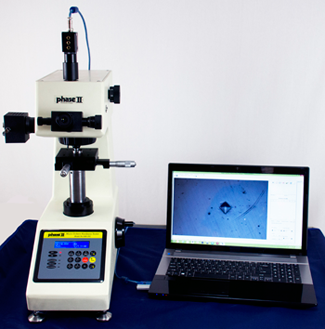

This Micro Vickers hardness tester is a precise testing system suitable for hardness analysis of metallic specimens in metallography laboratories or production environments
Technical Features:
- Testing Range: 1HV~2967HV
- Test Forces:0.098N(10g)、0.246N（25g）、0.49N（50g）、0.98N（100g） 1.96N（200g）、4.90N（500g）、9.80N（1000g）
- Max Height of the Specimen:70mm
- Max Distance from the Indenter Center to the Instrument Panel: 95mm
- Lens/indenters with:With Hand Turret
- Carriage Control: Automatic(loading /holding-up of the load/unloading)
- Amplification of the microscope:100×，400×
- Dwell Time of the Test Force:(5-60)S
- Min.Graduation Value of the Testing Drum Wheel:0.25um
- Dimension of the XY Table:100×100mm
- Movement Field of the XY Table:25×25mm
- Light source/Power Supply:110/220V,60/50Hz/Cold Light Source
- Weight/Gross Weight41.5kg Net Weight: 35kg
- Package Dimensions:425×245×490mm
Main Accessories for Phase II Vickers Hardness Tester Model 900-390:
- Base Machine
- X-Y Stage w/Micrometer
- Mini Thin Part Holding Fixture
- Mini Drill Chuck Fixture
- Mini Vise fixture
- Video Cam w/Adapter

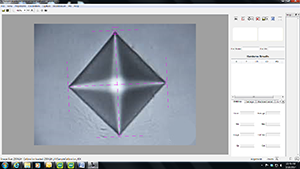

- Measurement Software
- USB Cable

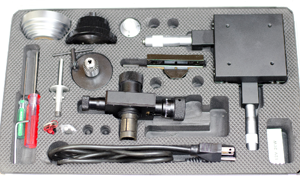

Tool Kit
900-391E digital Micro Vickers hardness tester with digital video cam, adaptor, auto turret control, x-y axis controller, servo driven auto X-Y axis table & auto measurement software"
|
|

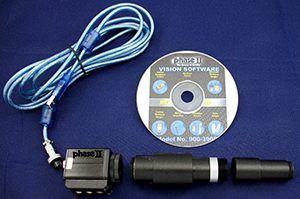

Video Cam, Adaptor, Software Kit
|
|
Model No. 900-391A Vickers Hardness Tester
Includes Video cam, adapter and manual measurement softwar
Model No. 900-391B Vickers Hardness Tester
Includes Video cam, adapter and Auto-Measurement software
Model No. 900-391C Vickers Hardness Tester
Includes Video cam, adapter and Turret control w/manual measurement software
Model No. 900-391D Vickers Hardness Tester
Includes Video cam, adapter and Turret control w/ Auto-Measurement software
Model No. 900-391E Vickers Hardness Tester
Includes Video cam, adapter, Automatic X & Y axis control, and auto Turret control w/ Auto-Measurement software
Packages A, B & C can be upgraded at any time. Contact Phase II for further information Packages C&D only work with Phase II brand and similar machines
Software for 900-390A can be upgraded to 900-390B. Contact Phase II for further information
Our advanced line of Micro Vickers Series hardness testers are state-of-the-art, precise testing systems suitable for hardness analysis of metallic specimens in metallography laboratories or production environments.
The Phase II micro-vickers hardness testers are versatile and user-friendly systems, designed for the accurate hardness testing of small precision parts, thin materials, coatings, wires and case depth determinations. The Phase II 900-391 Series micro-vickers hardness testers include Auto-Turrett, Video Cam, Adapter, USB Output Cable and a choice of 4-variants of Measurement software giving you the capabilities of machines that cost thousands more. The 900-391 Micro Vickers hardness tester covers the load range from 10g to 1kg.
Conforming to ASTM E-384/92 vickers hardness testers standards, the 900-391 series micro vickers hardness testers will offer unmatched repeatability. This micro Vickers hardness tester can also measure Knoop hardness after installing an optional knoop indentor. A perfect rugged performer suited for any environment, the Phase II vickers hardness testers are offered with a 5 year warranty and free lifetime technical support.
|
