Model No. 900-387

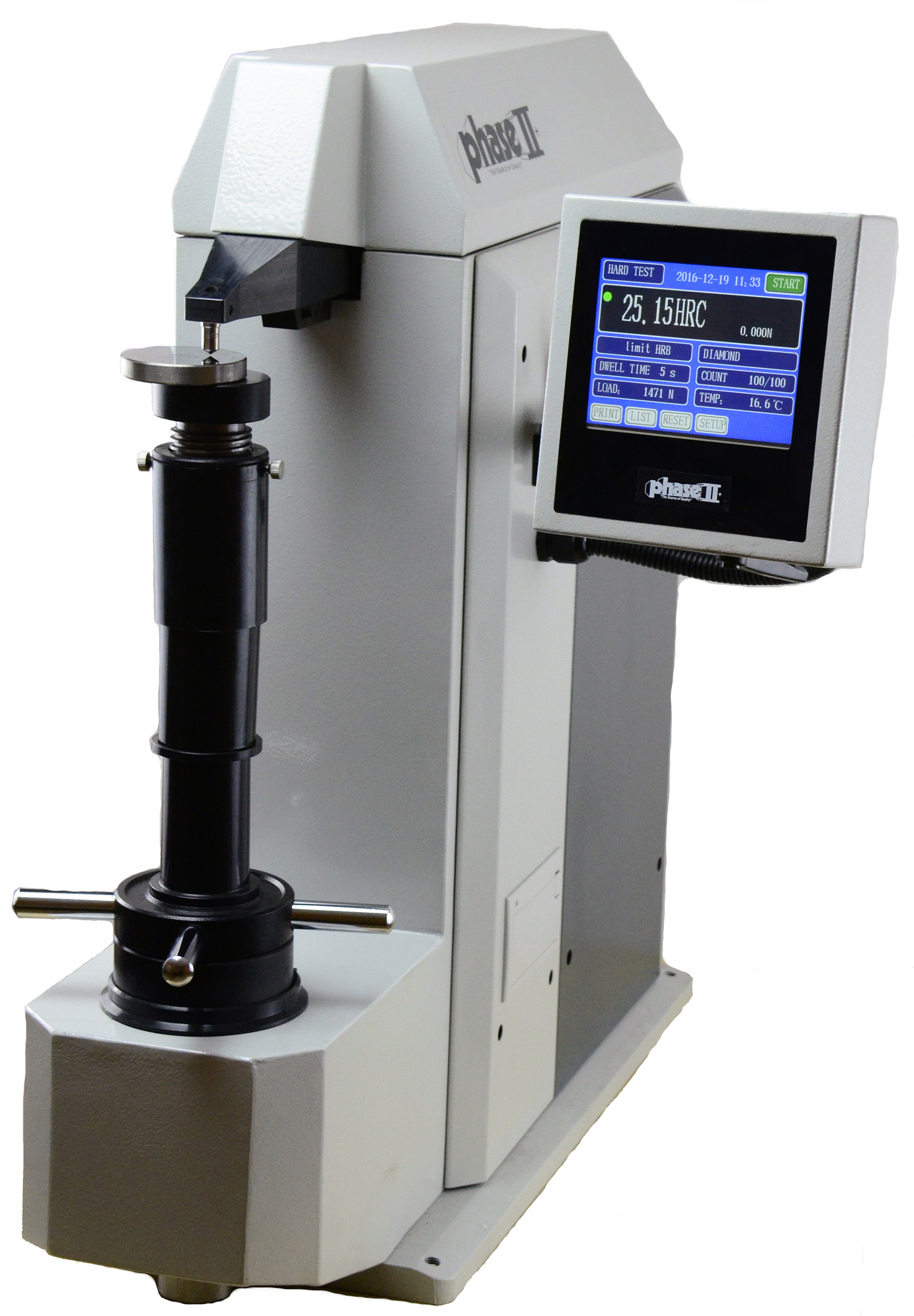

Features: Model No. 900-387 Rockwell Hardness Tester
This digital Rockwell/Superficial Rockwell hardness tester with fully automated load/unload procedures affords highly sensitive and accurate readings. Micro computer controlled Touch Screen with USB output to PC. The 900-387 digital Rockwell hardness tester offers programmable scale conversions, dwell times, statistical capabilities and test counter. Capable of testing in all of the regular Rockwell hardness scales
Direct Loading Method With Load-Cell Instead Of Dead Weight System. High Speed Test Cycle and Extremely Accurate Loading Control
- Automatic conversions to HB, HV, Other Rockwell Scales
- Touch Screen selectable system
- Upper/Lower Limit Settings
|
|
Load Cell, Closed Loop, Rockwell Hardness Tester!
Touch Screen Functions w/One Touch Testing Feature!
|
Specifications:Rockwell Hardness Tester
- Minor Load29.4N（3kgf）, 98.1N (10kgf
- Major Load147.1N(15kgf), 294.3N(30kgf), 441.3N(45kgf),
588.4N (60kgf),
980.7N (100kgf),
1471N (150kgf)
- Test Force ApplicationLoad Cell Closed Loop
- Test Force ControlMotorized
- Results DisplayHi Def LCD Digital Readout
- Resolution0.01HR
- Vertical Capacity7.80”
- Throat Depth5.90”
- Height700mm
- Width600mm
- Depth250mm
- Weight220 lbs
Accessories: Included
- C-scale Diamond Indenter
- 1/16” Ball Indenter
- 2- HRC test Blocks
- 1- HRB Test Block
- 1-HRN Test Block
- Test Table 5.87” (150mm)
- Flat Anvil 2.5” (63mm)
- Std. V- Anvil
- Dust Cover
- Accessory Case
- Test resolution0.01HR Rockwell unit;
- Operation temperature: 50° - 95°F (10ᵒC～35ᵒC)
- Ambient environment: clean, no vibration, no strong magnetic field, and no corrosive medium;
- Power supply: single phase, AC, 110-220 with manual change, 50～60Hz, 4A;
- Machine dimension: 700mm×250mm×600mm.
|
|
