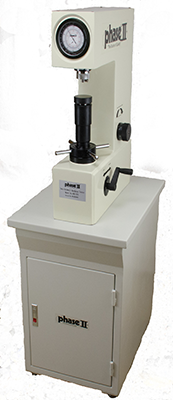

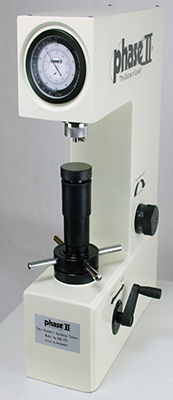

Model No. 900-375
Our latest Phase II analog Rockwell Hardness Tester, the 900-375, tests
both Rockwell hardness and Superficial Rockwell hardness in one unit, with state
of the art design and dynamic precision only found at Phase II. The Phase II
Twin Rockwell/Superficial Rockwell hardness tester is ruggedly engineered to
obtain highly sensitive and accurate readings. Conforming to ASTM E-18 Rockwell
hardness standards, this hardness tester will offer unmatched repeatability in
all Rockwell hardness scales. A perfect performer suited for any environment
including heat treatment facilities, tool rooms, workshops, laboratories and
inspection labs. Lifetime technical support is included with all Phase II Hardness
Testers. So test away with confidence and a level of accuracy you will only find
at Phase II.
Features: Model No. 900-375
- Direct analog dial reading
- Advanced design, easy to operate
- Engineered to obtain highly sensitive and accurate readings
- Conforms to ASTM E-18
|
|
|
| Perfect for laboratories, workshops, tool rooms, inspection labs, etc. |
Specifications:
| Minor
Load |
3
Kgf, 10
Kgf |
| Major
Load |
15Kgf 60
Kgf
30 Kgf 100
Kgf
45 Kgf 150
Kgf |
| Test
Force Application |
Dead
Weight |
| Test
Force Control |
Manual |
| Results
Display |
Dual
Scale Dial |
| Vertical
Capacity |
6.0
in. |
| Throat
Depth |
5.5
in. |
| Height |
26.0
in. |
| Width |
18.2
in. |
| Depth |
9.4
in. |
| Shipping
Weight |
250
lbs |
| Hardness
Scales: HRA B,C,D,E,F,G,H,K , L, M
(superficial) HR15N, HR15T, HR30N,
HR30T, HR45N, HR45T |
Accessories:
- Diamond Conical Indentor
- 1/16” Ball Indentor
- 2- HRC Test Blocks
- 1- HRB Test Block
- 1- HR15N Test Block
- 1- HR30N Test Block
- 1- HR45T Test Block
- Test Table 5.87” (150mm)
- Flat Anvil 2.5” (63mm)
- Std. Vee Anvil
- Accessory Case
- Dust Cover
Options:
|
|
