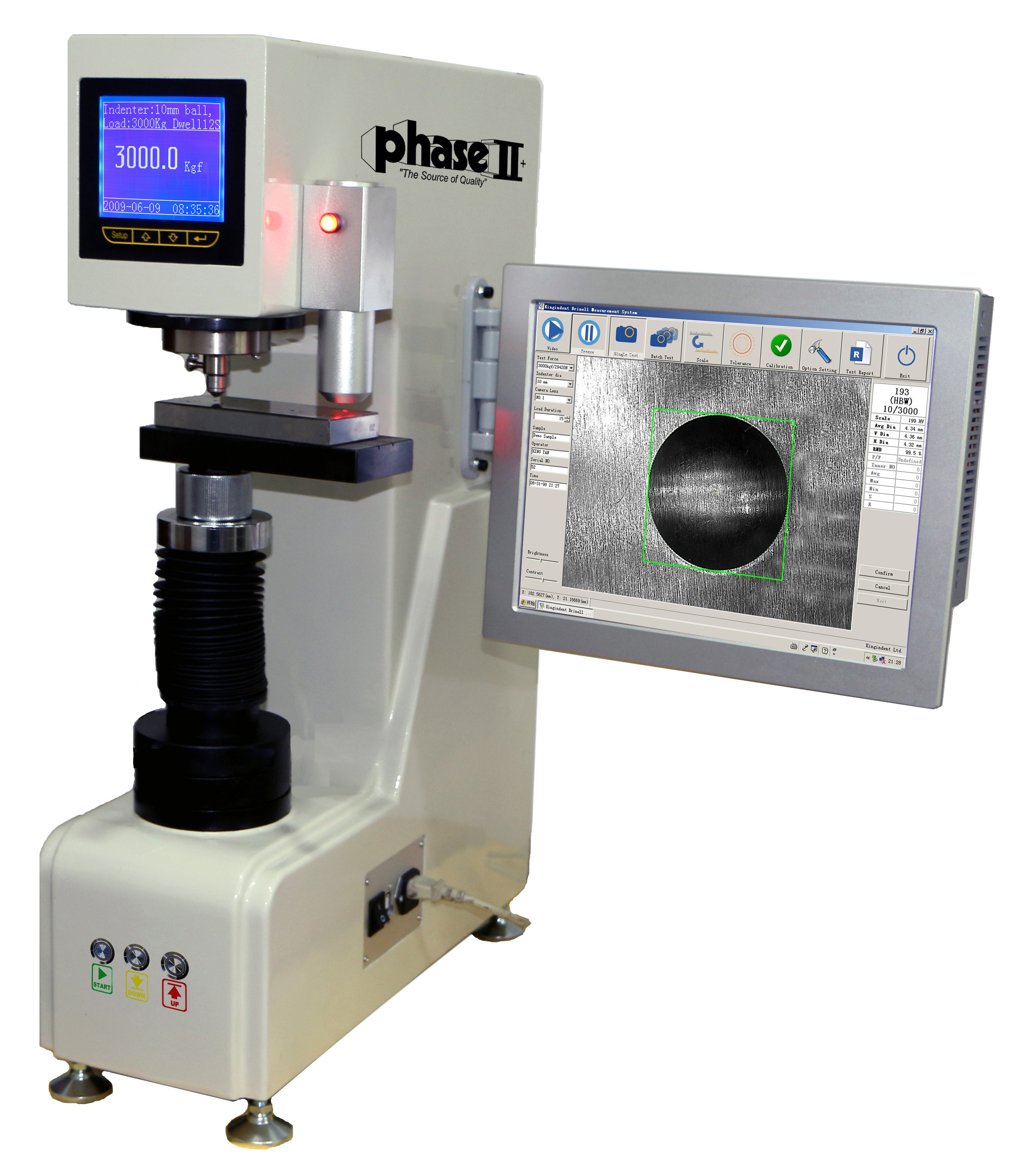

Model No. 900-359
Innovative closed-loop technology. The Brinell hardness tester incorporates the latest load cell technology. The test load is applied via a closed-loop control unit with a load cell, a DC motor and an electronic measurement and control unit. The result is highly accurate Brinell hardness measurements at all test loads up to 0.5%. The common load overshoot or undershoot as known from traditional dead weight, or open-loop, systems is eliminated. The absence of mechanical weights not only eliminates friction problems but also makes the equipment less sensitive to misalignments caused by vibrations.
Features: Brinell hardness tester
Fully automated test cycles. Press the START key once, the hardness tester will complete the entire test cycle automatically—1)sample elevation 2)major load application 3)Dwell Time 4) Unloading.
- Equipped with CCD camera and built-in touch screen

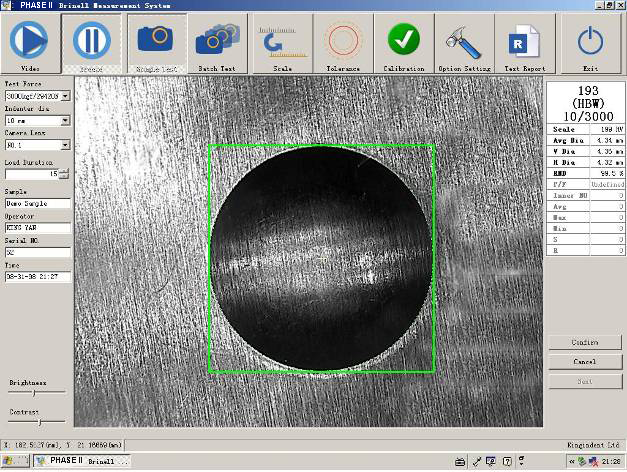

PC performs the indentation measuring process automatically.
- Measurement software includes useful functions.
a) Single and batch testing mode
b) Tolerance setting w/alarm
c) Statistic values such as Max, Min, Avg, R and S are selectable
d) Convert test result to other scales, such as HRC,HRB,HRA,HV,σb.
- All test results and indention images are saved automatically
v
- Test report created in Microsoft EXCEL format, can be edited, copied or printed.
- Load Cell driven system provides precise control of test force application
- Direct digital reading
- Engineered to obtain highly sensitive and accurate readings
- Perfect for laboratories, workshops, tool rooms, inspection labs, etc.
- Measuring Range: 8-650HBW
Specifications: Brinell hardness tester
- The gross weight of the tester is 50% less than the traditional dead weights type tester.

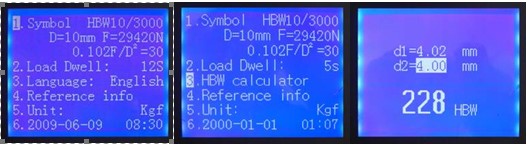

- Test load selection by keyboard and LCD screen.
Technical Data:
- Loads：3000kgf (29400N), 1500Kgf (14700N), 1000Kgf (9800N), 750Kgf(7355N),500Kgf (4900N),
250Kgf (2452N), 187.5Kgf (1839N), 125Kgf (1226N),100Kgf (980N), 62.5Kgf(612.9N)
- Load dwell duration: 2s～99s, can be set and stored
- Tungsten Carbide Ball indenter: 10mm, 5mm, 2.5mm
- Measuring range: 3.18HBW~
658HBW
- Max Weight Capacity for Z-Axis: 330 lbs (150kg)
- Max measurable height: 230 mm
- Max measurable depth: 140 mm
- Dimensions: 530mm×260mm×750mm
- Power supply: 220/110 V, 50/60 Hz, 4A
- Weight: 110kg
|
