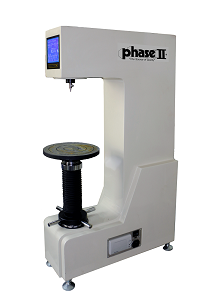

Model No. 900-349
This digital Superficial Rockwell hardness tester with fully automated load/unload procedures affords highly sensitive and accurate readings. Micro computer controlled with USB output to built-in mini printer or PC. The 900-349 digital superficial Rockwell hardness tester offers programmable scale conversions, dwell times, statistical capabilities and test counter. Capable of testing in all of the superficial Rockwell® scales.
Automatic conversions to: Scale conversion, HV, HB, HK, σb.
Features:
- Fully automated load/unload procedures affords highly sensitive and accurate readings
- Micro computer controlled with USB output to built-in mini printer or PC.
- Offers programmable scale conversions, dwell times, statistical capabilities and test counter
- Capable of testing in all of the Superficial Rockwell® hardness scales
- Automatic conversions to Scale conversion, HV, HB, HK, σb
- Easily obtain Average, Min/Max, S, R
- Menu selectable system
- Upper/Lower Limit Settings
- Memory of 500 test results
- Curved Surface Auto Correction
|
|
SPECIAL ORDER CALL FOR DELIVERY
|
Superficial Rockwell Hardness Tester Specifications:
| Minor Load |
3 Kgf |
| Major Load |
15 Kgf, 30 Kgf, 45 KGF |
| Test Force Application |
Dead Weight |
| Test Force Control |
Motorized |
| Results Display |
Hi Def LCD Digital
Readout |
| Resolution |
0.1HR |
| Memory/Output |
500 Tests/USB |
| Vertical Capacity |
16.5" |
| Throat Depth |
6.50" |
| Height |
28.34" |
| Width |
7.87" |
| Depth |
21.60" |
| Weight |
220 lbs. |
Accessories:
- N-scale Diamond Indentor
- 1/16" Steel Ball Indenter
- Test Table 5.87" (150mm)
- Flat Anvil 2.5" (63mm)
- Std. Vee Anvil
- Accessory Case
- Dust Cover
- 3 pieces-HRN test blocks
- 3 pieces-HRT test blocks
Options:
|
Key performance parameters
|

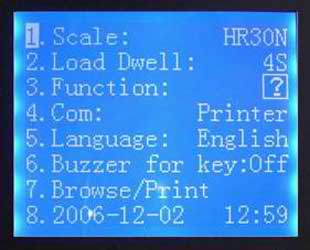

| Hardness Scales |

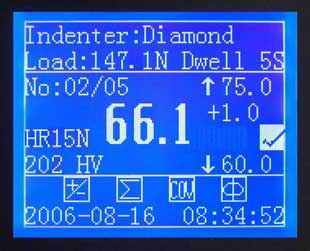

Data Statistics |
 |
 |

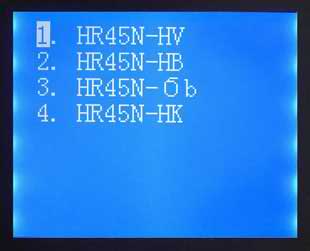

| Scale Conversions |

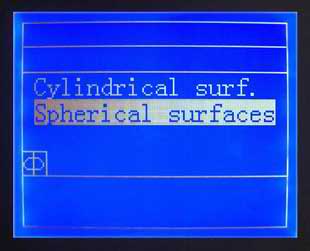

Automatic Surface Corrections |
 |
 |

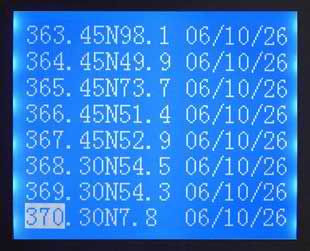

| Browse or print memory |

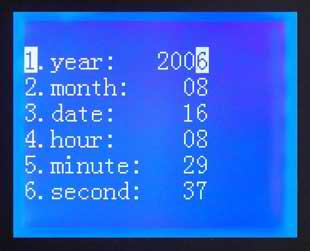

Set Time/Date & Year |
 |
 |

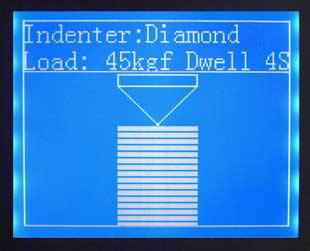

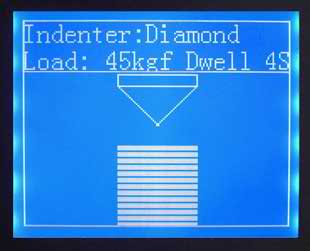

| Display when Loading |
|
 |
 |

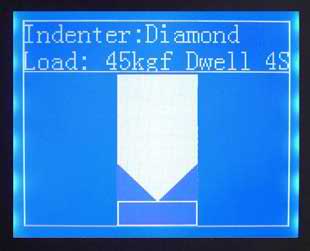

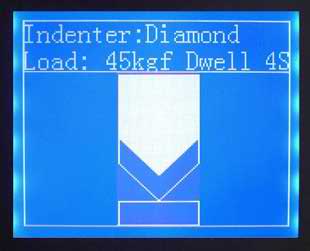

| Display when Loading |
|
 |
 |
| |
|
| |
|
|
|
